1/4" 3-Way Valve for Downstream Rinse w/ Mounting Bracket

The 326 Series three-way ball valve design promotes multiple configurations to fit the exact end use application. The bottom port is common and the 326 Series valve can be used as a diverter or selecting valve. The handle has 180° rotation and lies over the open port. When the handle is rotated 90° from either port, flow is shut off to both ports. PVC valve with FKM seals 1/4" Hose Barb x 1/4" Hose Barb x 1/4" Hose Barb Good chemical resistance Flag handle

Key Features:

• Three-Way Ball Valve: Allows flexible routing as a diverter or selector valve depending on your setup
• Common Bottom Port: Easy integration with soft wash pumps, tanks, and chemical lines
• 180° Handle Rotation: Clear handle positioning to indicate open/closed ports
• Valve Shut-Off Function: Rotating 90° from either side stops flow completely to both off ports
• Chemical-Resistant Construction: PVC body with FKM seals, excellent against soft wash solutions
• Secure Hose Barbs: 1/4" hose barb x 1/4" hose barb x 1/4" hose barb connections for quick install
• Flag Handle: Easy grip and visibility in active work environments
• Compact & Rugged: Approx. 3.17" long × 2.90" tall

Specifications:

• Max Pressure: 125 psi
• Max Temperature: 140°F
• Ball Hole: .312" diameter
• Not Suitable for Vacuum Applications

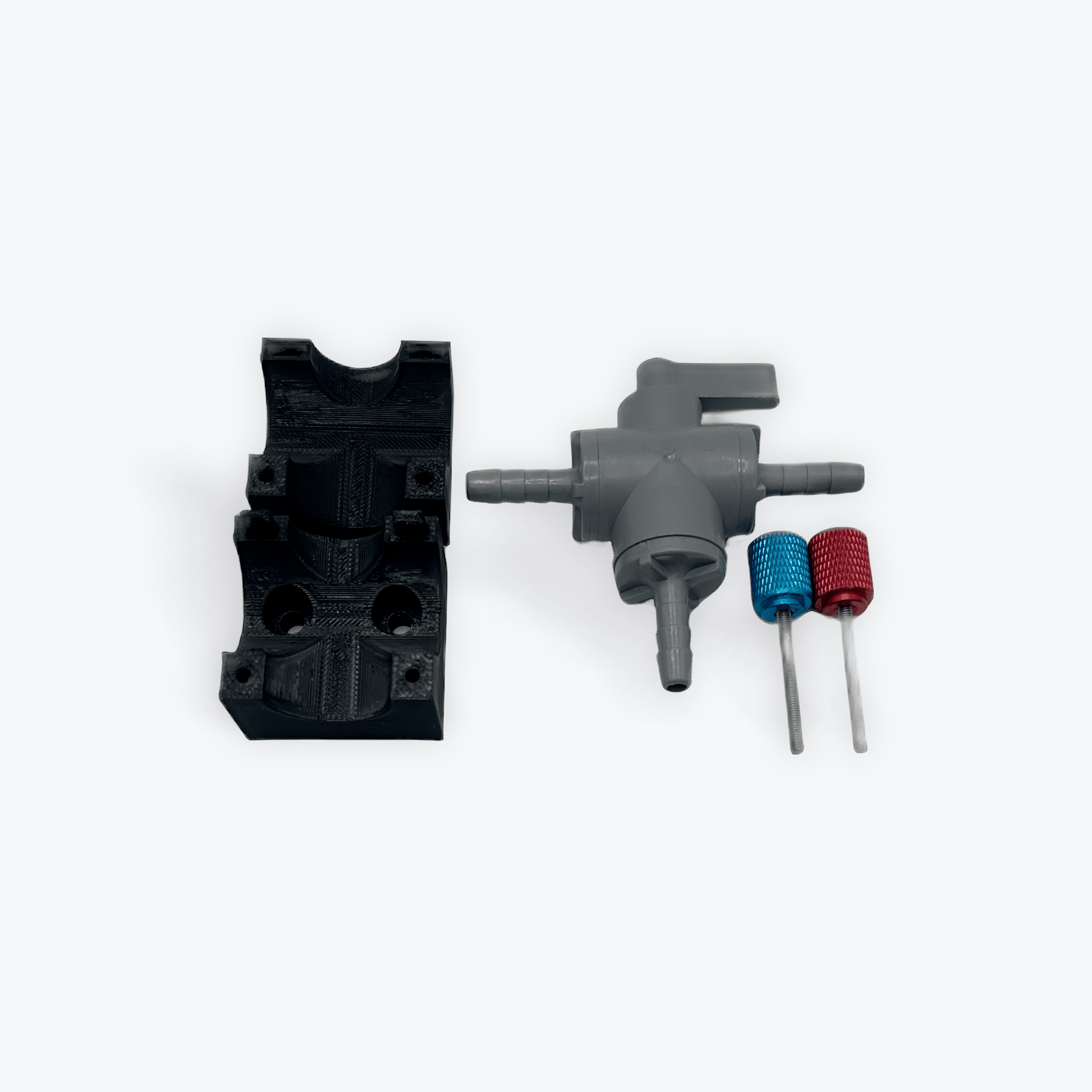

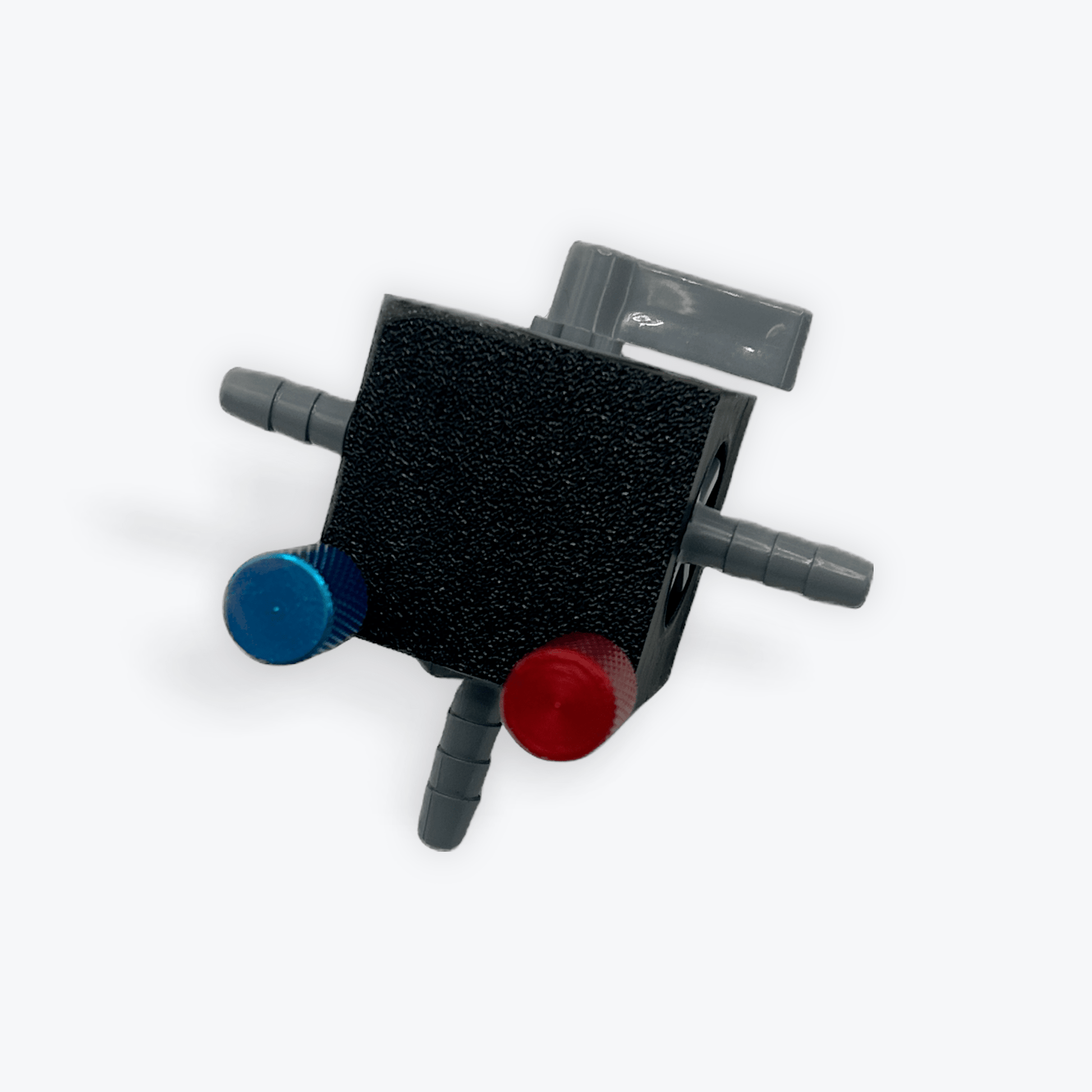

Kit Includes:

• 1 × 1/4" 3-Way PVC Ball Valve
• 1 × 3D-Printed Mounting Bracket (2 Pieces)
• 2 × Screws with Red & Blue Knobs for secure mounting of bracket around valve

** This image is for reference only. Product color and style may vary based on availability.  **
