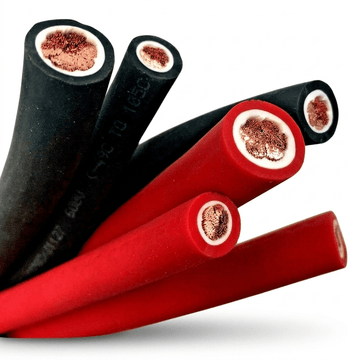

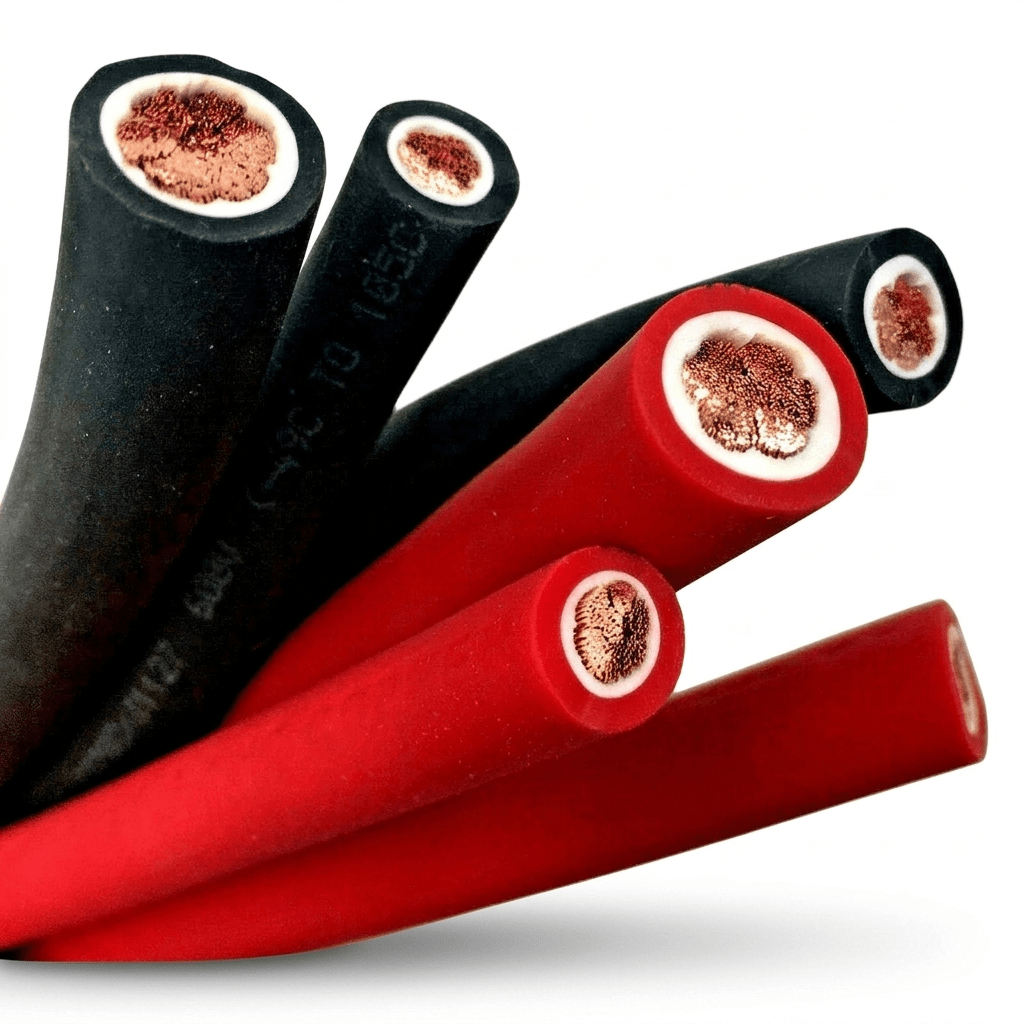

Battery Wire ( Sold By The Foot )
Regular price
$2.50
Sale price
Regular price
Shipping calculated at checkout.
Available in stock (15)
- Free Shipping on Orders $149+
- Ships same day from Oregon City, OR. Flat-rate shipping: $8.95 under $50 $12.95 under $149
- FREE local pickup at Oregon City shop
Guaranteed safe and secure checkout
✓ Family-owned working wash shop in Oregon City, OR
✓ Built on years of running our own pressure washing business
✓ Talk to an Expert: 503-403-6185
Battery Cable Flexible OFC Copper MTW/THW/SGT ASE J1127 ( Sold By The Foot )
Made from premium Flexible Multi-Rated UL Listed Battery Cable which is pure OFC copper, Made in the USA and full copper AWG wire gauge size.
This Cable Carries Multiple Ratings in One Wire:
- UL MTW Machine Tool Wire
- UL1426 BC5-W2 Boat Cable ABYC and USCG Approved for use on boats
- 105C DRY 75C WET Temp Rating
- UL THW Building Wire Meeting NEC Code for building wire
- UL AWM Styles 1232/1283/1337/10070 Rated 600V
- UL AWM Style 10269 Rated 1000V
- UL VW-1 Flame Rating
- RoHS Compliant
- SAE J1127 SGT Automotive Battery Cable
- PVC Jacket is Very Resistant to Oil, Water, Acid, Gas, Tears and Abrasions
- The Jacket Insulation Meets UL VW1 Flame Resistance Rating
- Annealed Pure Electrolytic Copper with Class K (Type III) Rope Lay for flexibility
- FULL AWG Copper Content
- MADE IN THE USA
Both the 6 & 8 AWG Gauge multi-rated battery cable is specially designed to meet the demands of various environments while staying extremely flexible. Full AWG sized OFC copper conductor made from pure annealed electrolytic copper, will you get maximum power. The PVC jacket compound is specially formulated to resist chemicals, water, abrasions, oil, sunlight and is rated water resistant 75C Wet and 105C Dry (BC5-W2). This cable is rated up to 1000 Volts as AWM 10269 and 600V as the other wire types. Suitable for use in automotive applications, solar battery bank wiring, power inverter battery cables, marine battery cables, NEC Code wiring situations and many other applications calling for a durable yet flexible battery cable. The battery cables meet the requirements of SAE J1127 Type SGT as well as UL1426 BC5-W2 making them ABYC and US Coast Guard approved for boat and marine use.
Benefits over Welding Cable:
- Full AWG Size OFC Copper Conductor
- UL Listed - Quality Strictly Controlled
- Superior Oil Resistance of PVC where EPDM on many welding cables is a poor insulator against oil
- SAE Rated for Automotive and Marine Uses
- UL Listed as water resistant
- Meets NEC Code requirements
Benefits over CCA Power Wire:
Our cable is Copper...REAL COPPER but watch out for other "CCA Cable" as CCA Means Copper Clad Aluminum so you'd be using Aluminum which is a poor conductor compared to this pure copper cable! You have to use larger sizes of aluminum CCA cable, approximately 2 sizes larger to get close to the same power delivery as real copper cable! If you care about maximum power use our cable!
Specifications:
Gauge Stranding Outside Diameter Weight LBS/ft
8 182 .270 in .054
6 266 .305 in .106
For use as Battery Cables:
Table of Allowable Amperage for conductors 50V or less with 105C rating
Gauge Amps Outside Amps Inside
AWG of Engine Space of Engine Space
8 80 68
6 120 102
** All wire and cable amperage ratings are governed by the installation and not by the wire itself! There are different codes and suggestions in different installation environments so be sure to look into any codes or regulations covering your specific installation to determine the correct amperage ratings. **
Suitable Uses:
- Automotive Battery Cables
- Marine / Boat Battery Cables
- Solar Battery Bank Array
- Forklift Charging Cables
- Power Inverter Cables
- Welding Cable Leads
- Amplifier Wiring
- ...and many other uses
** Wire is sold by the foot without CRIMPED ENDS or FITTINGS. **
