One of the hardest questions for someone starting a pressure washing business is not "what does a rig cost" — it is "what actually needs to be on it." So here is a real one, component by component. This trailer went out to a contractor who had just started his business and needed something he could tow with his truck and store in the garage when he was not using it, so it would not tie up a vehicle.
The machine
An 8 GPM Honda GX690 gear drive unit. This is the machine we point people at when they intend to grow, and it is deliberately more machine than a first-year business strictly needs — because it is also the one you will not be replacing in two years. Gear drive slows the pump down and isolates it from engine vibration, which is what makes a machine survive daily commercial use.
Power and fuel
- 24 DC marine-grade battery — built to be run down and recharged repeatedly, which is exactly what a 12V soft wash pump does.
- 11 gallon fuel tank, expandable. There is a plugged port on it so a second machine can be fed from the same tank later. That plug is the whole point: it is a $0 decision at build time that saves a re-plumb when the business grows.
Tanks
Three 100 gallon slim tanks plus a 7 gallon soap tank:
- The front two tanks are tied together into a single 200 gallon buffer. Tying them rather than running one large tank does something people do not expect — the two tanks baffle the water against each other and noticeably reduce sloshing on the road.
- The rear tank is the bleach tank.
- The 7 gallon soap tank sits on a custom mount.
All three sit in custom-made stainless steel tank brackets. Look underneath and you will see plates on each side that the brackets bolt to, with a full bracket system behind them — not a single bolt through the deck. Tanks working loose over time under the weight of liquid is one of the biggest failure points in this industry, and a mounting plate is far more stable than the typical setup.
Reels and hose
- Three 18 inch full-frame aluminum reels with stainless steel manifolds.
- 200 ft of 1/2 inch soft wash hose on the cam reel.
- 200 ft of FierceJet pressure washing hose.
- A ball valve swivel on the pressure side — an add-on option, and worth it. It cuts hand fatigue noticeably over a full day.
The reel mounts are quarter-inch stainless steel, not aluminum. That is a place it would have been easy to cut a corner and we did not.
The soft wash side
A 7 GPM 100 PSI soft wash pump feeding a Pro Mixer XL with a rinse valve, so the mix ratio is set at the mixer rather than batched in the tank. If that means nothing to you yet, start with how a soft wash mixing system actually works.
The detail nobody asks about but everybody appreciates
The garden fill runs through the reel and up into the tank, into a Hudson float valve. When the tank fills, it shuts off by itself. You hook up at the customer's spigot and stop thinking about it instead of watching a tank and walking back to turn off a tap.
The trailer itself

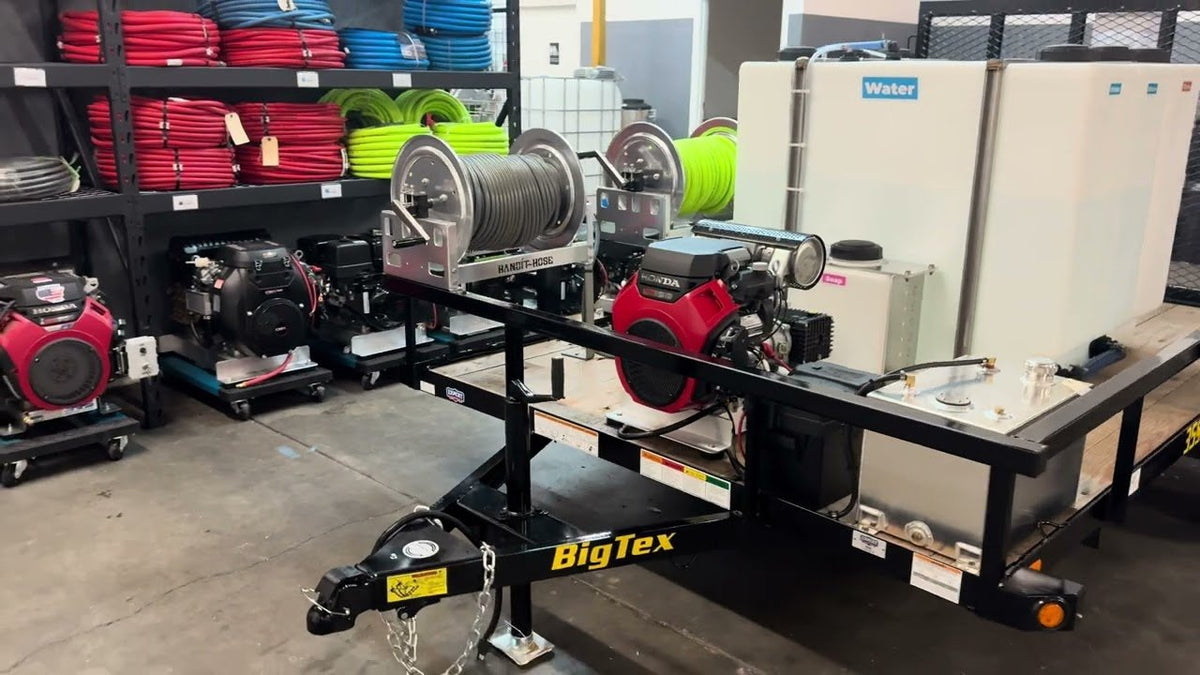

A Big Tex with a 3,500 lb axle. We have used these for years — they are built stout. This one has a shorter tongue, which makes it easier to pull and cuts the overall length, which matters a great deal when the plan is to park it in a garage.
Why this is the right shape for a startup
There is a lot of open deck space at the back for a second machine, a surface cleaner, or a toolbox as the business grows. Nothing on it is exotic. It is simple to work off, simple to maintain, and it is not overly complex — which matters more than it sounds when you are learning the trade and troubleshooting on a customer's driveway.
If we were starting out again, this is close to exactly what we would run.
